MORE THAN 20 YEARS OF EXPERTISE IN QUALITY SPUTTERING TARGETS
Preparation
We can reuse backing tubes from other suppliers, from sprayed or casted targets.
We have a full circular process as after the life use of the target, recover the coating thru a melting process and once clean run it thru our process.
MANUFACTURING, DESIGN & OPTIMIZATION
We can reuse backing tubes from other suppliers, from sprayed or casted targets.
We have a full circular process as after the life use of the target, recover the coating thru a melting process and once clean run it thru our process.
Clean up of use targets
Alloys
Sn
Purity> 99.9% ZnAi (2%)
First Layer
PATENTED PROCESS
CONTINUOUS CASTING PROCESS
We can reuse backing tubes from other suppliers, from sprayed or casted targets.
We have a full circular process as after the life use of the target, recover the coating thru a melting process and once clean run it thru our process.

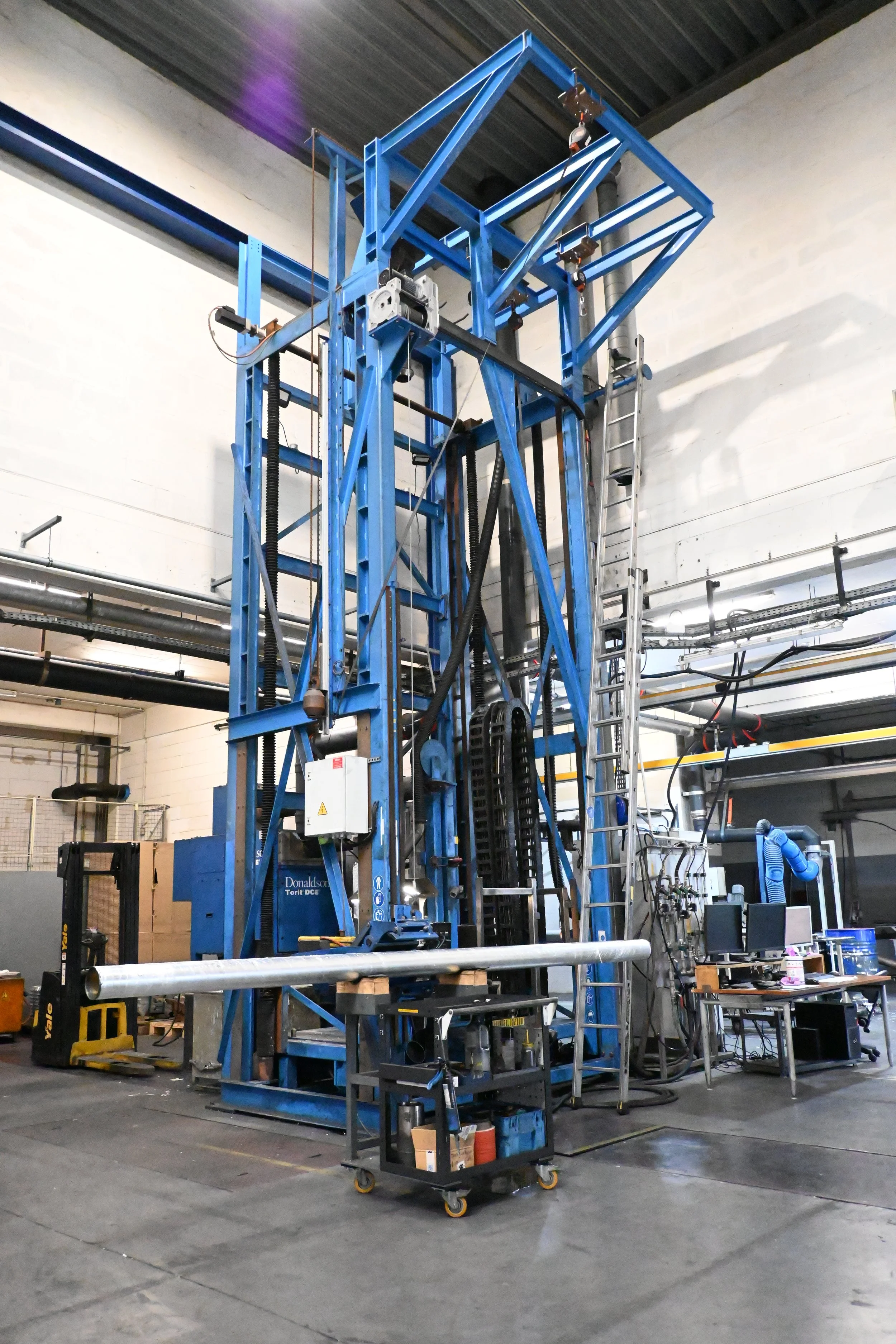

VERTICAL CONTINUOUS CASTING
Advantages
Casting around SST backing tube with bonding layer. Rotatable targets from 1m to 4m long with or without dog bone.
Excellent thermal transfer between targets material and backing tube thanks to chemical link with the backing tube. Temperature feedback and automatization of the process allow a fine and control and a repeatable process.
Casting
Excellent thermal transfer between targets material and backing tube thanks to chemical link with the backing tube.
Temperature feedback and automatization of the process allow a fine and control and a repeatable process.
Machining

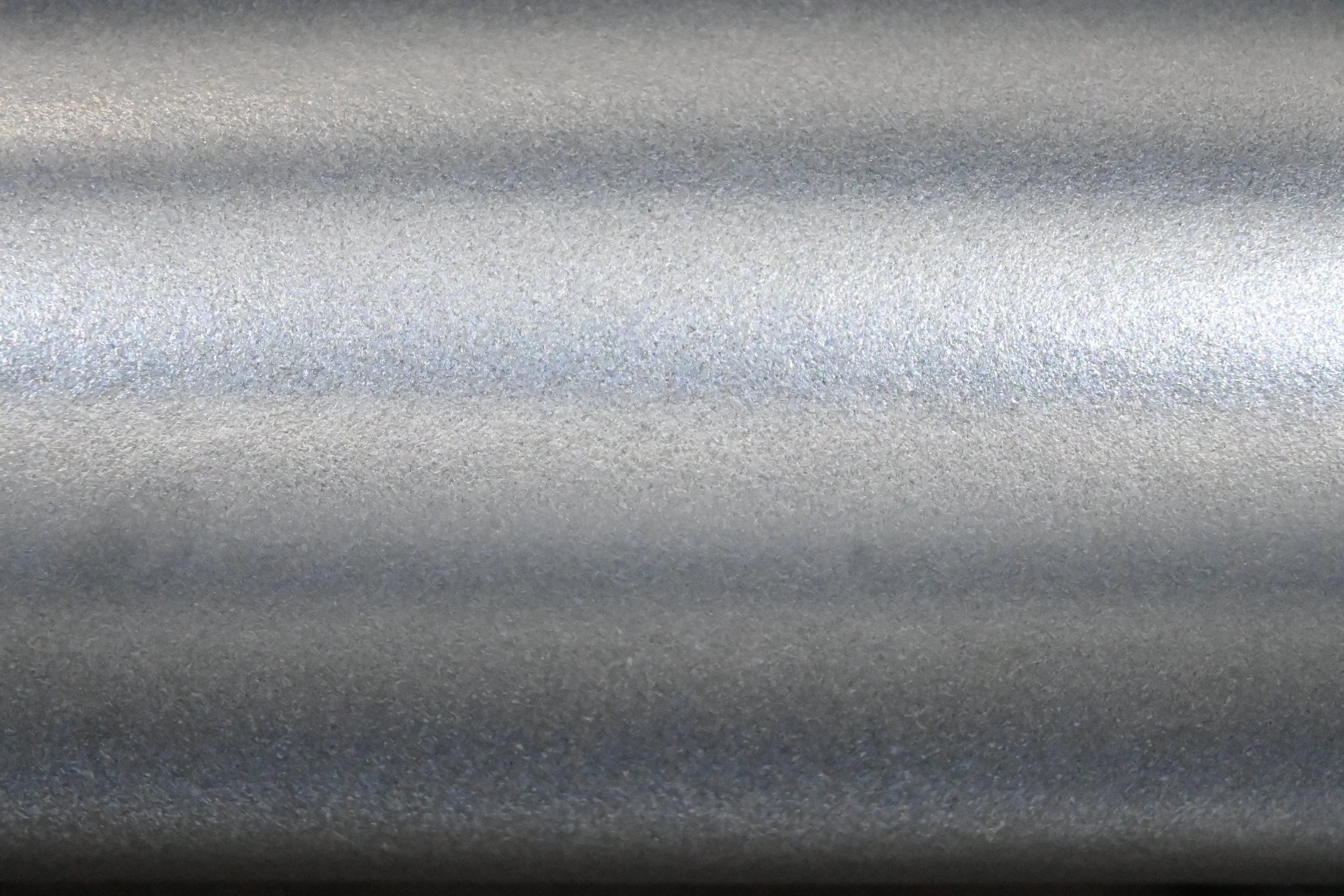

Homogeneous grain size along all targets length thanks to continuous casting process.100% density, and controlled metal/alloy composition.
ZnAi (2%)
Purity Zn+AI >99.9%
AI:2% + 0.5/ -0.25 %
ZnSn (30%)
Purity Zn+AI >99.9%
Sn:30% + 1/-1 %
Zn
Purity Zn+AI >99.9%
ZnSn (15%)
Purity Zn+Sn >99.9%
Sn:15% + 1/ -1 %
ZnSn (48%)
Purity Zn+Sn >99.9%
Sn:48% + 1/-1 %
Quality Controls
Control of the backing tube roundness and straightness after each production step.
Control of the bonding by a full ultrasound scan of each target.
Expertise in Rotatable Targets.
MORE THAN 20 YEARS OF EXPERTISE IN
QUALITY MANUFACTURING, DESIGN & OPTIMIZATION
Detail Handling
Each shipment is clearly labeled with handling instructions and packed to meet proper handling standards, helping ensure your order arrives safely, in excellent condition.
